In today’s world of advanced systems and high-performance equipment, connecting multiple technologies often becomes one of the biggest challenges for engineers. Power delivery, communication signals, sensor data, and even fluid or gas transfer must coexist within the same system. Traditionally, each interface requires its own connector and cable; consuming valuable space, complicating cable management, and increasing the risk of errors during setup or maintenance.
So how do you simplify this? How do you combine power, signals, and even fiber optics or fluids into one reliable, space-saving solution?
Hybrid Connectors
Hybrid connectors are interfaces that bring multiple connection types together into a single, unitized, or modular solution. Instead of several bulky connectors, a hybrid design integrates them into one housing, dramatically reducing the number of entry points into an enclosure.
Hybrid connectors solve three major problems:
- Space Optimization: By combining multiple interfaces into one, hybrid connectors minimize the number of housing and mounting points required.
- Reliability and Speed: Fewer connectors mean fewer opportunities for mistakes, faster setup, and reduced downtime.
- Customizability: Hybrid interfaces can be engineered to combine exactly what’s needed: power, data, RF, fiber optics, or fluids.
Depending on the application, these solutions can take the form of circular hybrid connectors (compact, rugged interfaces with mixed contact sizes) or modular systems, where building blocks are stacked to create a connector tailored to the exact requirements of the project.
How Hybrid Technology Works
Hybrid connectors are made possible by combining multiple contact types within a single insulated housing or frame. For example:
- High-current contacts for power delivery sit alongside smaller signal contacts for communication lines.
- Optical fibers can be integrated for high-bandwidth data transmission.
- Even fluid or gas channels can be incorporated for specialized equipment.
Materials science plays a critical role. Insulating components ensure electrical safety while maintaining the structural integrity of the connector. Housing options from lightweight plastics to rugged metal shells protect against shock, vibration, and environmental ingress.
ODU: Engineering the Future of Hybrid Connectivity
ODU has been at the forefront of developing hybrid connectors that address the toughest challenges across industries, from military and aerospace to medical technology and industrial automation. Some of their standout solutions include:

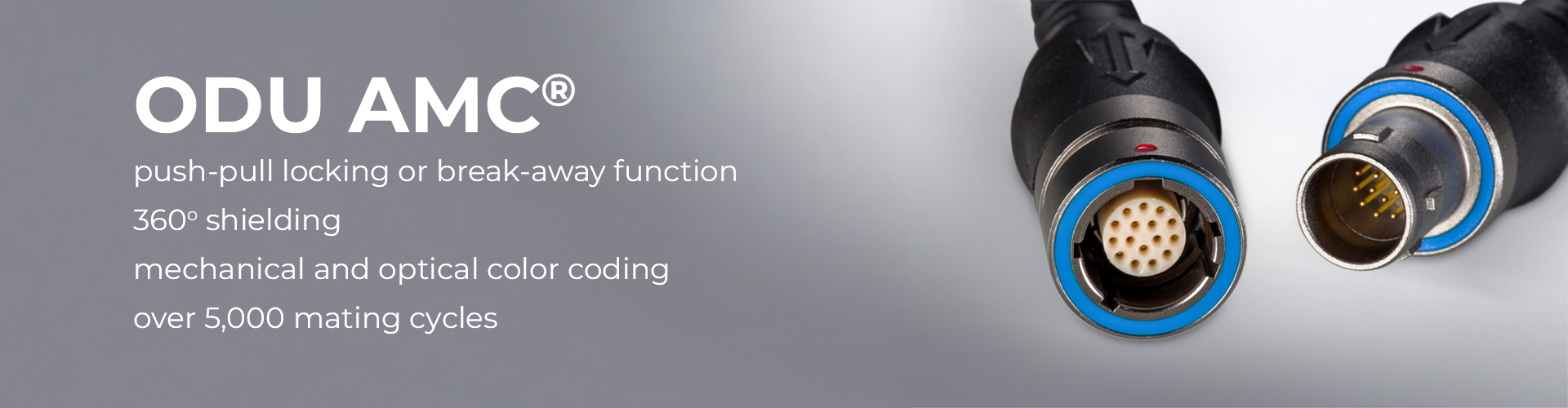

ODU AMC® & ODU AMC® High-Density
- Compact circular connectors supporting mixed power and signal lines, as well as high-speed data interfaces.

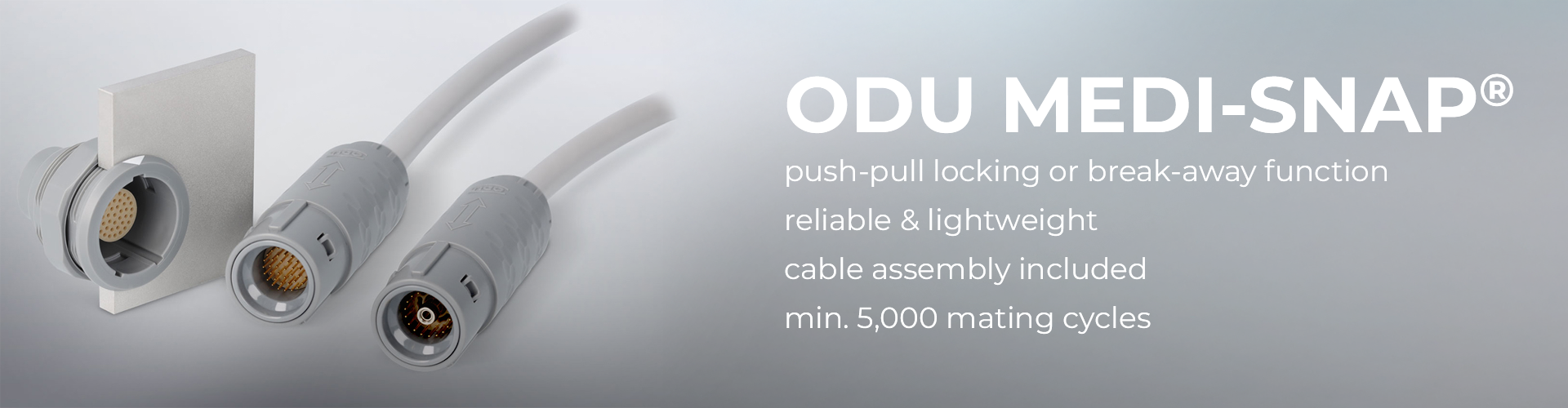

ODU MEDI-SNAP® & ODU MINI-SNAP®
- Push-pull connectors that can integrate electrical contacts, fluids, or even fiber optics. These have been used in medical technology, outdoor industrial systems, and test and measurement equipment.

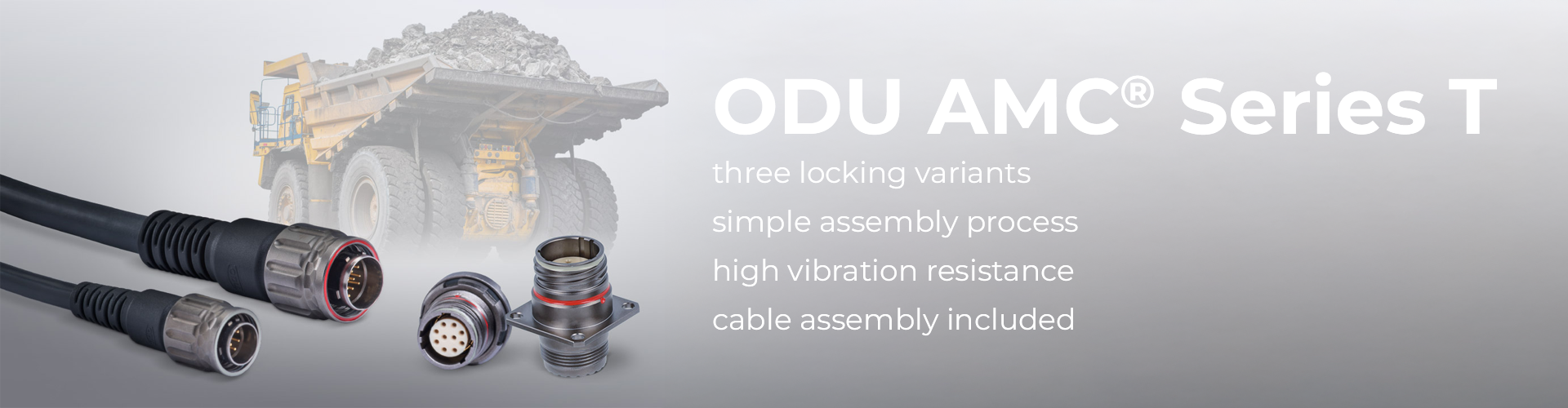

ODU AMC® Series T
- Rugged high-density hybrid solutions, including enhanced expanded beam fiber optic interfaces with up to 12 fibers for mission-critical communication.

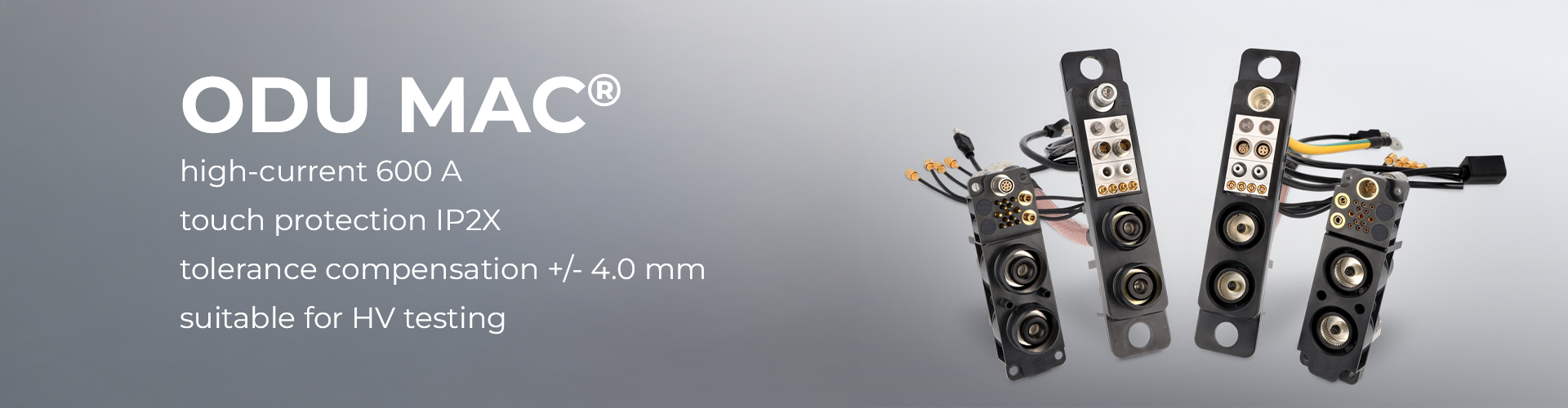

ODU-MAC® Modular Connectors
- A highly flexible system that allows engineers to design their own hybrid interface by stacking modules into frames. Perfect for complex applications that require multiple interface types, including RF, fiber optics, power, and fluids.
Across all these product families, ODU doesn’t just deliver connectors; they provide complete custom hybrid cable solutions. By designing and producing both connectors and assemblies, ODU ensures seamless integration, rapid turnaround, and reliability in every volume from prototypes to full production runs.
Why It Matters for Your Project
For engineers and purchasing managers, the value of ODU solutions is clear:
- Space and weight savings in your design.
- Reduced cabling complexity and improved system reliability.
- Tailored, application-specific interfaces developed with the support of ODU’s expert engineering teams.
As ODU’s long-time distributor, SACA Electronics is ready to help you identify the right ODU hybrid connector for your system, whether it’s a compact circular interface or a fully customized modular solution.
When your project demands the highest level of reliability, flexibility, and innovation, ODU hybrid connectors are the answer.
